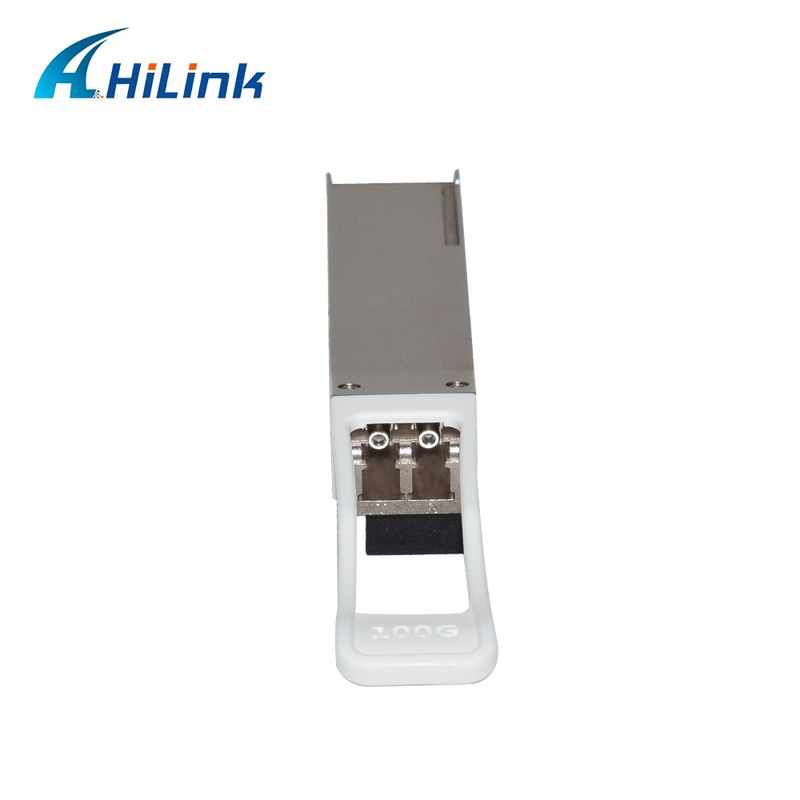

100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA Single mode DDM

100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA Single mode DDM

محل منبع:

گوانگدونگ، چین

نام تجاری:

Hilink

گواهی:

CE RoHs

شماره مدل:

HL-QSFP28 100G 60km

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
محصولات نام:
100G QSFP28 60 کیلومتر
کانکتور:
ال سی دوبلکس
حداکثر فاصله کابل:
60 کیلومتر
تضمین:
سه سال
OEM:
حمایت
زمان تحویل:
3-7 روز کاری
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
1PCS
قیمت
قابل مذاکره
جزئیات بسته بندی
بسته معمولی یا OEM.
زمان تحویل
5-8 روز کاری
شرایط پرداخت
L/C، T/T، وسترن یونیون
قابلیت ارائه
3000 عدد در ماه
توضیحات محصول

100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA  Single mode DDM


Features

4 lanes MUX/DEMUX design

Support 100GBASE-ZR4 lite for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps LAN WDM EML laser and PIN receiver with SOA

Aggregate bandwidth of > 100Gbps

Duplex LC connectors

Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Support FEC(Forward Error Correction)


Applications

100GBASE-ZR4 lite


Descriptions

HL-QSFP28 100G 60KM is designed for 60km optical communication applications. This module contains 4

lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter

face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

A block diagram is shown in Figure 1.


100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA  Single mode DDM 0

100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA  Single mode DDM 1


OEM and ODM


OEM/ODM order is available.


Guarantee


We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.


What we supply


We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
