Name: 800G OSFP112 DR8 transceiver, dual MPO-12 APC interface, 1310nm, up to 500m
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: 800G-OSFP112-DR8
Price: 130.00 USD
Availability: InStock

خونه > محصولات > ماژول فرستنده اپتیکال >

800G OSFP112 DR8 transceiver, dual MPO-12 APC interface, 1310nm, up to 500m

800G OSFP112 DR8 transceiver dual MPO-12,OSFP112 transceiver 1310nm 500m,optical transceiver module with MPO-12 APC

OSFP112 transceiver 1310nm 500m

optical transceiver module with MPO-12 APC

Place of Origin:

Guangdong, China

نام تجاری:

Hilink

گواهی:

CE Rohs

Model Number:

800G-OSFP112-DR8

با ما تماس بگیرید

درخواست نقل قول

800G OSFP112 DR8 transceiver, dual MPO-12 APC interface, 1310nm, up to 500m

جزئیات محصول

Product Name:

800G-OSFP112-DR8

Data Rate:

800G

Reach:

up to 500m

Operating Temperature:

0 to 70℃

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1 pieces

قیمت

Send Inquiry know latest price

Packaging Details

Plastic box+Carton

Payment Terms

T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance

محصولات مرتبط

800G OSFP112 DR8 transceiver, dual MPO-12 APC interface, 1310nm, up to 500m

بهترین قیمت را دریافت کنید

کیفیت بالا 10G Ethernet WDM BIDI ER 40KM 1270/1330 XFP ماژول نوری تجهیزات فیبر نوری

بهترین قیمت را دریافت کنید

ماژول فرستنده و گیرنده نوری 400GBASE-SR8 OSFP PAM4 850nm 100m با FEC DDM MPO-16 MMF سازگار با عمومی 400G QSFPDD 850nm 100m SR4 MPO

بهترین قیمت را دریافت کنید

ویدیو

فرستنده و گيرنده نوری 10KM 1310nm MPO16 APC 8 درجه DOM 200G QSFP DD LR8 PSM8 فاصله طول موج

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

حالا تماس بگیرید

توضیحات محصول

800G OSFP112 DR8 Transceiver

Dual MPO-12 APC interface, 1310nm, up to 500m

Product Specifications

Attribute	Value
Product Name	800G-OSFP112-DR8
Data Rate	800G
Reach	up to 500m
Operating Temperature	0 to 70℃

Product Description

This 800Gb/s Octal Small Form-factor Pluggable (OSFP) optical module features a top closed fin design for 500m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s.

An optical fiber cable with dual MPO-12 connector can be plugged into the OSFP112 DR8 module receptacle, with proper alignment ensured by guide pins inside the receptacle. Electrical connection is achieved through an OSFP MSA-compliant edge type connector.

The module supports I2C interface for status monitoring and control.

Key Features

OSFP form factor hot pluggable
CMIS compliance
8 channels of 100G-PAM4 electrical and optical parallel lanes
Single optical port of dual MPO-12/APC
Top open fin design
500m maximum reach via single mode fiber
16 Watts max power consumption
Operating temperature range: 0°C to 70°C

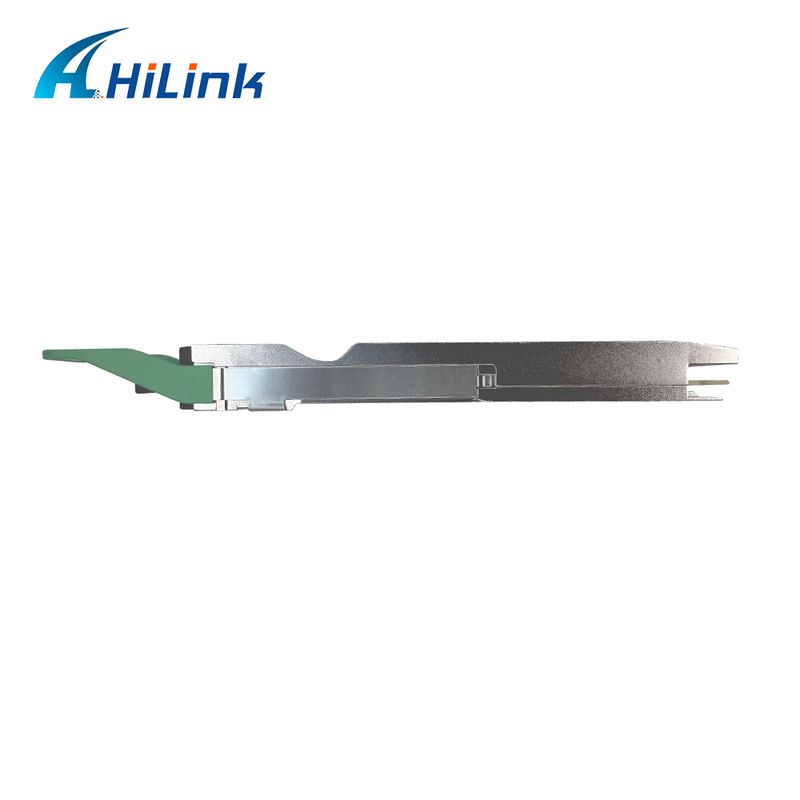

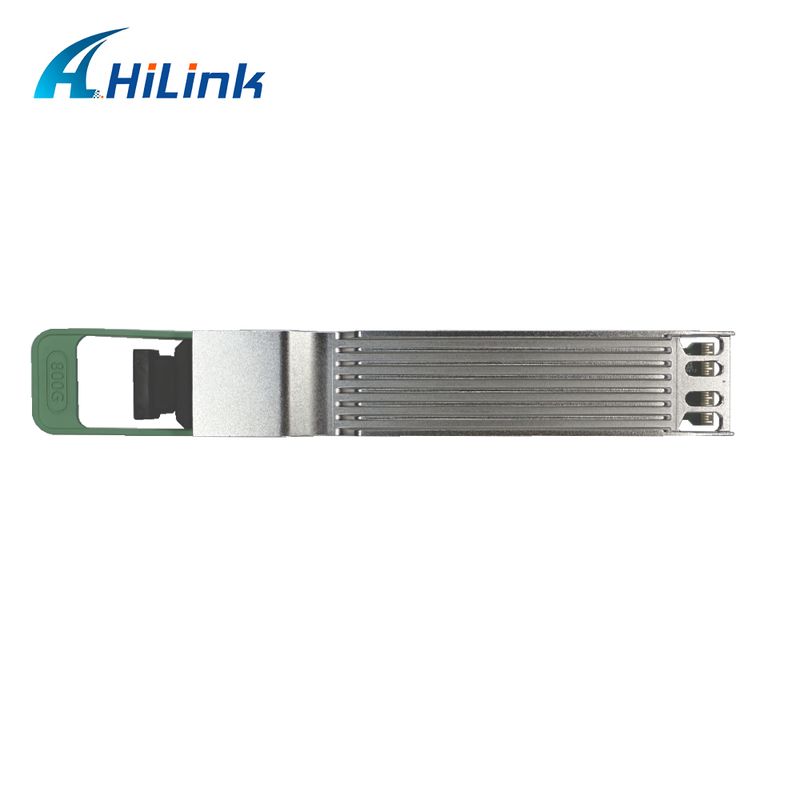

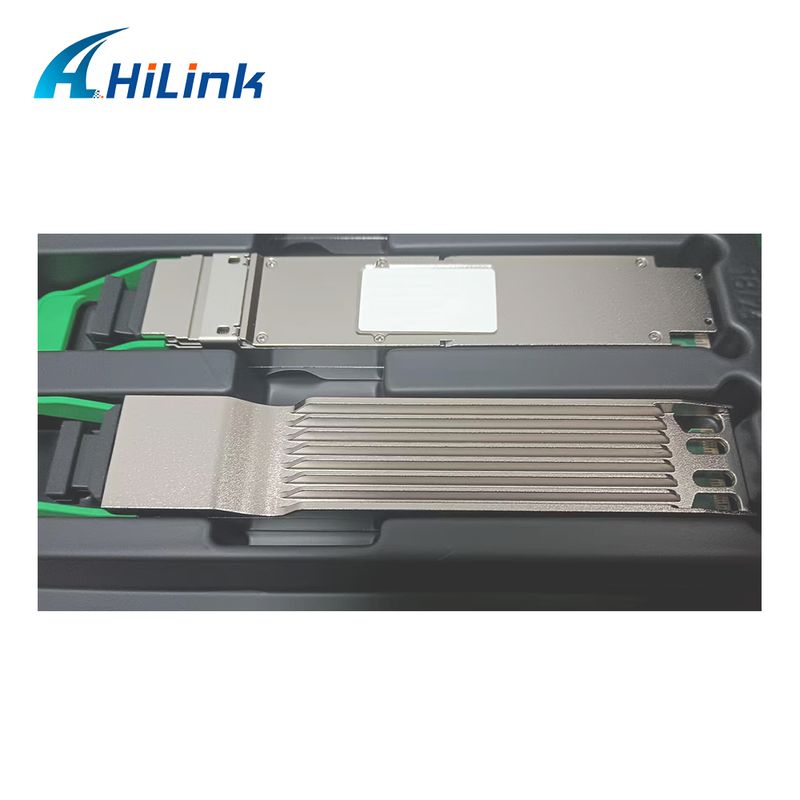

Product Images

Warranty & Quality Assurance:

All optical transceivers are brand new with new components and parts. We never use old or refurbished materials. Each unit undergoes functional testing and aging tests before shipment.

We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available.
