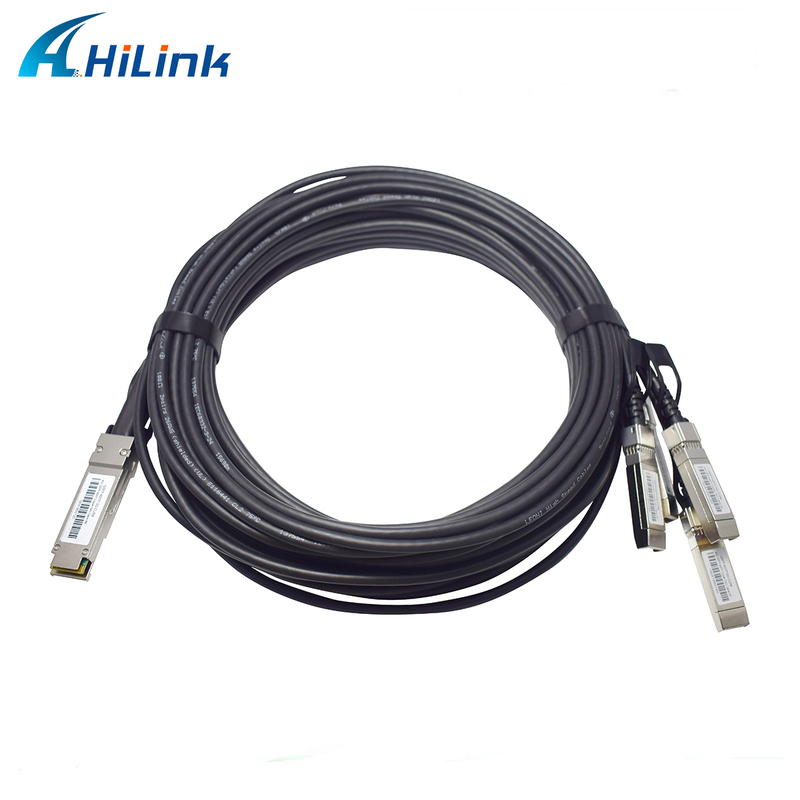

Name: 40G QSFP+ to 4*10G SFP+ 5M Passive Direct Attach Copper DAC Cable for 10G/40Gigabit Ethernet Data Centers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: QSFP40G-4XSFP10G-DAC
Price: 893.00 USD
Availability: InStock

خونه > محصولات > مستقیم اتصال کابل مسی >

40G QSFP+ to 4*10G SFP+ 5M Passive Direct Attach Copper DAC Cable for 10G/40Gigabit Ethernet Data Centers

40G QSFP+ to 4*10G SFP+ DAC Cable,5M Length Direct Attach Copper Cable,10G/40Gigabit Ethernet DAC Cable

5M Length Direct Attach Copper Cable

10G/40Gigabit Ethernet DAC Cable

محل منبع:

چین

نام تجاری:

Hilink

گواهی:

CE Rohs

شماره مدل:

QSFP40G-4XSFP10G-DAC

با ما تماس بگیرید

درخواست نقل قول

40G QSFP+ to 4*10G SFP+ 5M Passive Direct Attach Copper DAC Cable for 10G/40Gigabit Ethernet Data Centers

جزئیات محصول

وضعیت:

کاملاً جدید

استفاده کردن:

fttx

محل منبع:

گوانگدونگ ، چین

فاصله:

5M (یا سفارشی)

آرم:

می توان سفارشی کرد

نوع کابل::

کابل DAC

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

Need to negotiate

جزئیات بسته بندی

جعبه پلاستیکی+کارتن

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T ، Western Union ، Alipay ، PayPal/WeChat/تضمین تجارت

قابلیت ارائه

2000 قطعه/هفته

محصولات مرتبط

کابل فیبر نوری DAC اتصال مستقیم غیرفعال SFP+ به SFP+ 10G 1 متری، کابل DAC 10G

بهترین قیمت را دریافت کنید

25G SFP28 به SFP28 کابل DAC 1M 2M 3M 5M کابل مس دو طرفه

بهترین قیمت را دریافت کنید

2m SFP-H10GB-CU2M 10G SFP+ Passive Direct Attach Copper Twinax DAC Cable

بهترین قیمت را دریافت کنید

کابل DAC 400G QSFP-DD 400G به 8 x 50G کابل شکستن SFP56

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

حالا تماس بگیرید

توضیحات محصول

High Quality 40G QSFP+ to 4*10G SFP+ 5M Copper DAC Cable Breakout Passive Fiber Optic Equipment

Product Description

The QSFP+ to 4x SFP+ Passive cable assemblies are high-performance, cost-effective solutions for SFP+ and QSFP+ equipment interconnects. These hybrid cables comply with SFF-8436 and SFF-8431 specifications, offering low power consumption for short-reach interconnect applications. Each lane supports data transmission rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Key Features

Hybrid cable conforms to Small Form Factor SFF-8436 and SFF-8431 standards
Supports multi-gigabit data rates: 1 Gb/s - 10 Gb/s (per channel)
Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
Hybrid cable link length up to 5m (passive limiting)
High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
Power Supply: +3.3V
Low power consumption: 0.02 W (typical)
Operating Temperature Range: 0°C to 70°C

Applications

10G/40Gigabit Ethernet
InfiniBand 4x SDR, DDR, QDR
Switches, Routers, and HBAs
Data Centers
Fiber Channel

QSFP Cable Series

Part Number	Description
HL-QSFP+40G-Optical cable
HL-QSFP-40G-AOC1M	QSFP+ to QSFP+, Active optical cable 1M
HL-QSFP-40G-AOC3M	QSFP+ to QSFP+, Active optical cable 3M
HL-QSFP-40G-AOC5M	QSFP+ to QSFP+, Active optical cable 5M
HL-QSFP-40G-AOC7M	QSFP+ to QSFP+, Active optical cable 7M
HL-QSFP-40G-AOC10M	QSFP+ to QSFP+, Active optical cable 10M
HL-QSFP-40G-AOC20M	QSFP+ to QSFP+, Active optical cable 20M
HL-QSFP-40G-AOC30M	QSFP+ to QSFP+, Active optical cable 30M
HL-QSFP-40G-AOC50M	QSFP+ to QSFP+, Active optical cable 50M
HL-QSFP-40G-AOC100M	QSFP+ to QSFP+, Active optical cable 100M
HL-QSFP+40G Copper Cable
HL-QSFP-H40G-CU1M	QSFP+ to QSFP+ Passive Copper Cable 1M
HL-QSFP-H40G-CU2M	QSFP+ to QSFP+ Passive Copper Cable 2M
HL-QSFP-H40G-CU3M	QSFP+ to QSFP+ Passive Copper Cable 3M
HL-QSFP-H40G-CU4M	QSFP+ to QSFP+ Passive Copper Cable 4M
HL-QSFP-H40G-CU5M	QSFP+ to QSFP+ Passive Copper Cable 5M
HL-QSFP-H40G-ACU7M	QSFP+ to QSFP+ Active Copper Cable
HL-QSFP-H40G-ACU10M	QSFP+ to QSFP+ Active Copper Cable
HL-QSFP-4SFP+ Copper Cable
HL-QSFP-4SFP10G-CU0.5M	QSFP+ to 4SFP+ Passive Copper Cable 0.5M
HL-QSFP-4SFP10G-CU1M	QSFP+ to 4SFP+ Passive Copper Cable 1M
HL-QSFP-4SFP10G-CU3M	QSFP+ to 4SFP+ Passive Copper Cable 3M
HL-QSFP-4SFP10G-CU5M	QSFP+ to 4SFP+ Passive Copper Cable 5M
HL-QSFP-4SFP+ Optical Cable
HL-QSFP-4SFP10G-AOC1M	QSFP+ to 4SFP+ Active optical cable 1M
HL-QSFP-4SFP10G-AOC3M	QSFP+ to 4SFP+ Active optical cable 3M
HL-QSFP-4SFP10G-AOC5M	QSFP+ to 4SFP+ Active optical cable 5M
HL-QSFP-4SFP10G-AOC7M	QSFP+ to 4SFP+ Active optical cable 7M
HL-QSFP-4SFP10G-AOC10M	QSFP+ to 4SFP+ Active optical cable 10M

Product Image

Our Services

OEM and ODM: We accept OEM/ODM orders and can customize products according to your requirements, including designing product labels for your company.

Shipment: We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 1-5 days.

Guarantee: All optical transceivers are brand new with new components and have undergone functional and aging tests. We provide a 3-year warranty from the date of shipment.
