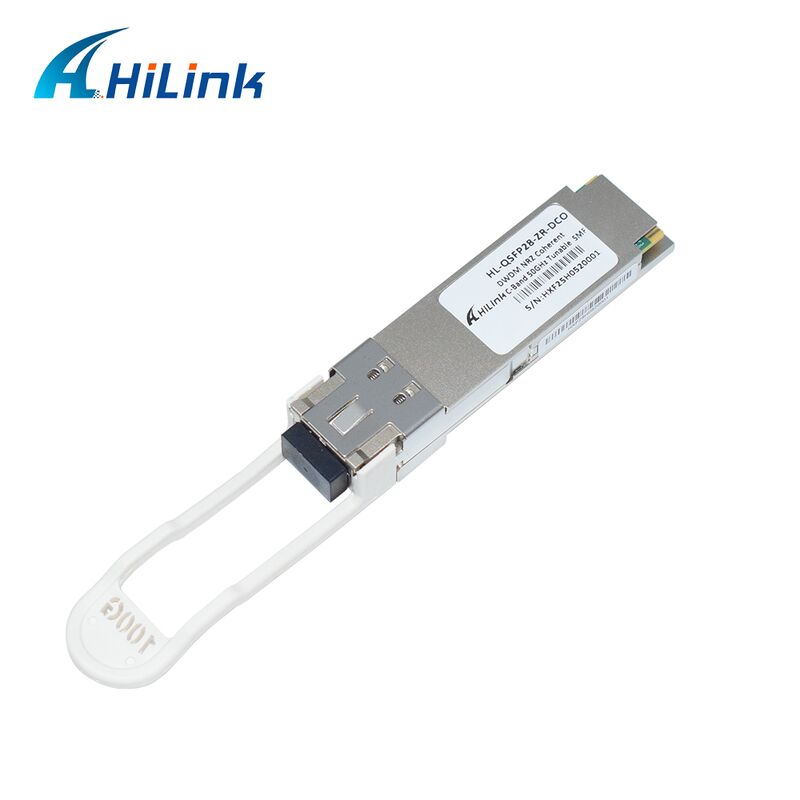

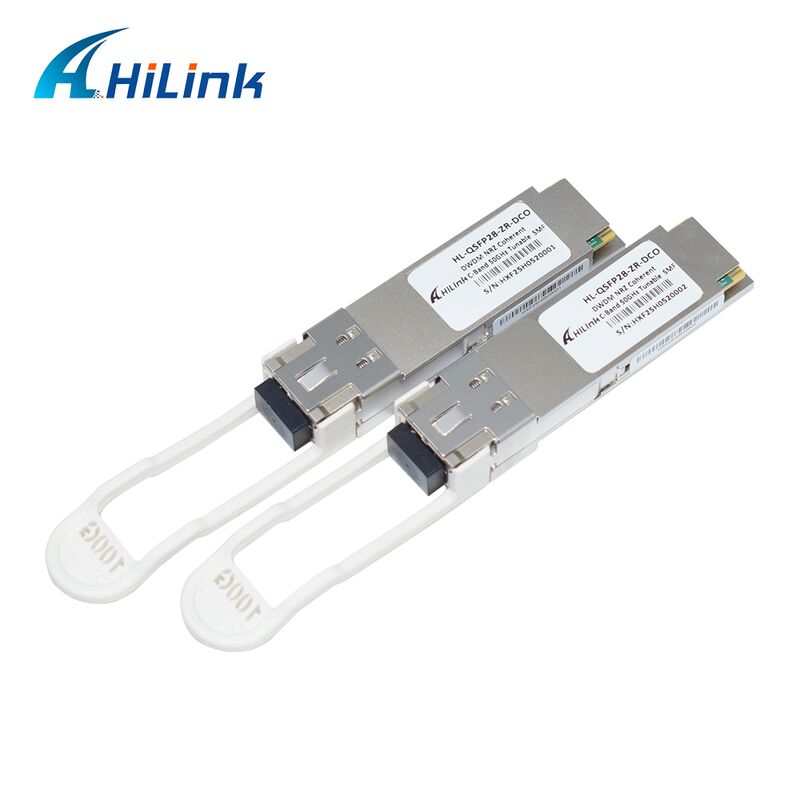

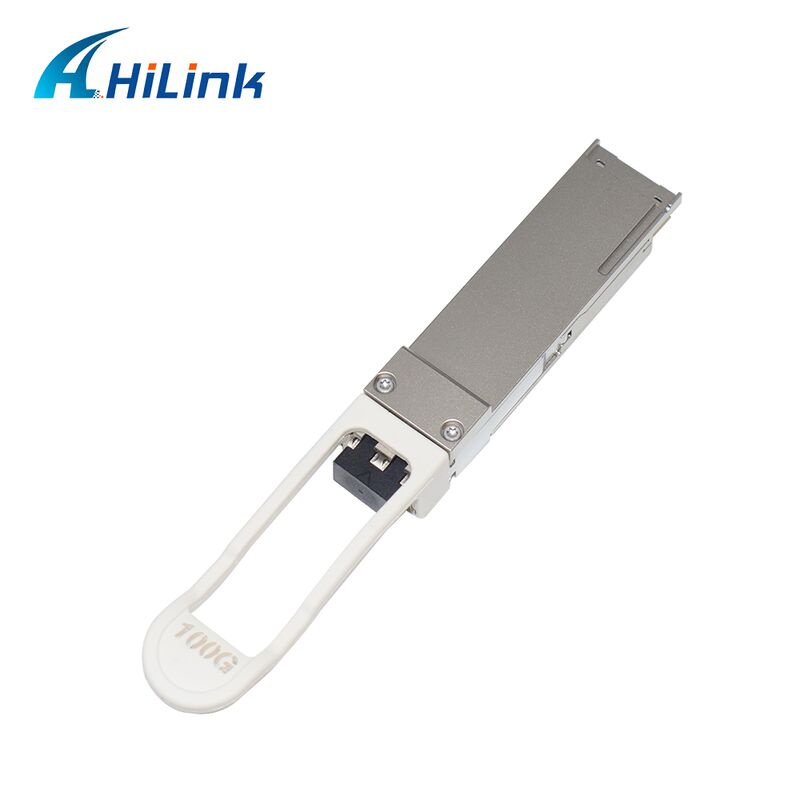

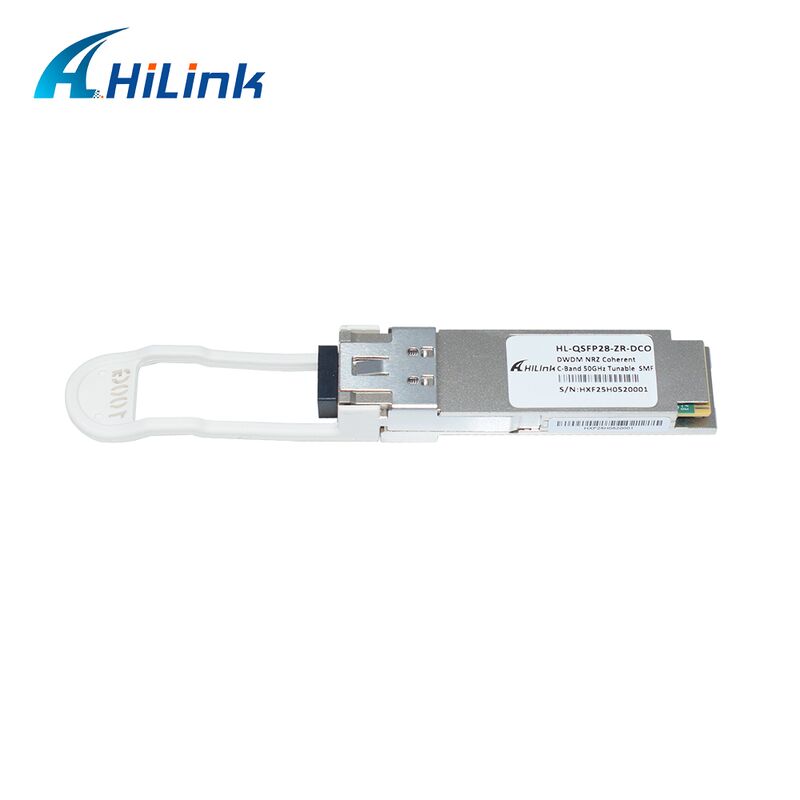

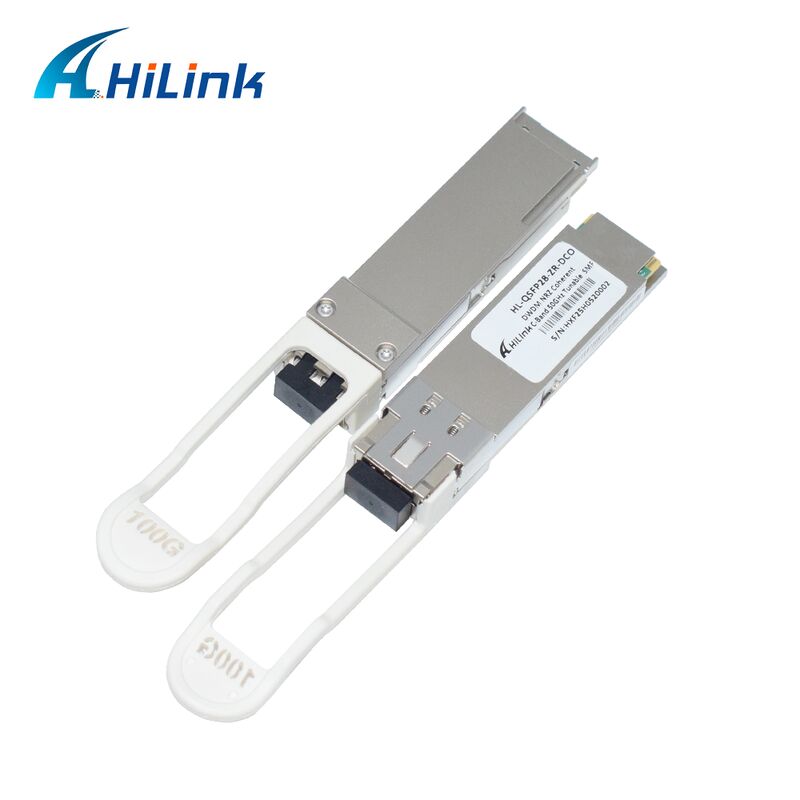

Name: HL-QSFP28-DCO 100G ZR QSFP28 Digital Coherent Optics Transceiver with 80km Transmission Distance
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP28-DCO
Price: 130.00 USD
Availability: InStock

خونه > محصولات > ماژول فرستنده اپتیکال >

HL-QSFP28-DCO 100G ZR QSFP28 Digital Coherent Optics Transceiver with 80km Transmission Distance

100G Data Rate QSFP28 Transceiver,80km Transmission Distance Optical Transceiver Module,Digital Coherent Optics Transceiver

80km Transmission Distance Optical Transceiver Module

Digital Coherent Optics Transceiver

محل منبع:

گوانگدونگ، چین

نام تجاری:

Hilink

گواهی:

CE RoHs

شماره مدل:

HL-QSFP28-DCO

با ما تماس بگیرید

درخواست نقل قول

HL-QSFP28-DCO 100G ZR QSFP28 Digital Coherent Optics Transceiver with 80km Transmission Distance

جزئیات محصول

نام محصول:

100G ZR QSFP28 DCO

نرخ داده:

100 گرم

فاصله:

80 کیلومتر

گارانتی:

3 سال

DDM:

بله

زمان تحویل:

3-7 روز کاری

OEM:

پشتیبانی کنید

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

قیمت

قابل مذاکره

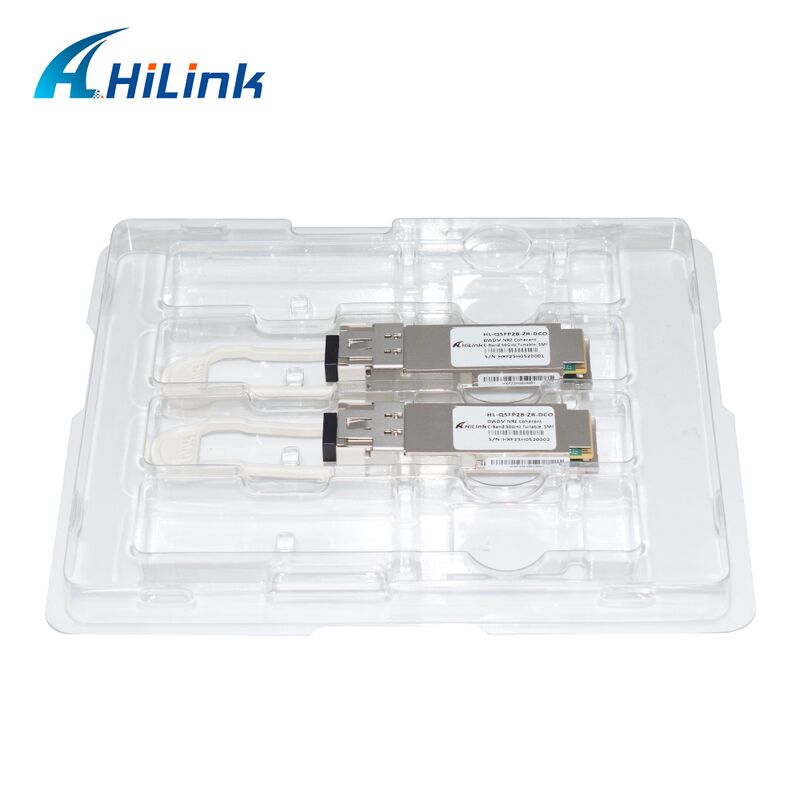

جزئیات بسته بندی

بسته معمولی یا OEM

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، T/T، وسترن یونیون

محصولات مرتبط

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature

بهترین قیمت را دریافت کنید

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

بهترین قیمت را دریافت کنید

هيلينک كابل هاي مورد نياز MTP/MPO

بهترین قیمت را دریافت کنید

هیلینک کابل های سفارشی MTP / MPO Patchcord

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

HL-QSFP28-DCO 100G ZR QSFP28 Digital Coherent Optics Transceiver

Product Overview

The HL-QSFP28-DCO is a high-performance Digital Coherent Optics transceiver supporting 100G transmission for edge network applications with extended reach capabilities.

Key Features

Digital Coherent Optics module in hot-pluggable QSFP28 form factor
IEEE 100G Ethernet (CAUI-4) or ITU-T 100G OTN (OTL4.4) compliant host interface
100G optical coherent interface with DP-DQPSK modulation and Staircase FEC
Transmission reach: Up to 80km unamplified (loss limited) or 120km amplified (dispersion limited, optionally extendable to 300km)
Full C-band tunable, 50GHz or 100GHz grid with optional Flextune™ automatic wavelength tuning
Case temperature range: 0°C to 70°C (C-temp) or -40°C to 85°C (I-temp)
Power dissipation: < 5.5W (C-temp) or < 6.0W (I-temp)
Remote digital diagnostics monitoring

Applications

Access and aggregation networks
Cable TV networks
Wireless front-haul & mid-haul

Technical Specifications

The Coherent HL-QSFP28-DCO QSFP28 Digital Coherent Optics (DCO) transceiver supports 100G transmission over distances up to 120km (dispersion limited, optionally extendable to 300km) for edge network applications. On the host side, the module can accommodate IEEE 100GE Ethernet or ITU-T OTN OTU4 signals. The line side coherent interface specifications are aligned with IEEE Std. 802.3-2022 100GBASE-ZR and ITU-T G.698.2 DW50U-8A2(C)F / DW100U-8A2(C)F, which define a 27.95GBd dual-polarization differential QPSK modulation format.

The module is offered in both commercial temperature (0°C to 70°C) and industrial temperature (-40°C to 85°C) versions, with power dissipation of less than 6.0W. The local oscillator laser is full C-band tunable and the transceiver can optionally be configured to support Flextune™ automatic wavelength tuning.

The transceiver module is compliant to the Specification for QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) and specifications referenced therein. The transceiver is RoHS compliant and lead-free per Directive 2011/65/EU.

Compliance and Standards

This product meets industry standards for quality and environmental compliance, including RoHS Directive 2011/65/EU requirements.
