Name: 400G OSFP LR4 PAM4 Optical Transceiver 10km Duplex LC Single Mode Fiber Module for Data Center
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-OSFP-400G-LR4
Price: 130.00 USD
Availability: InStock

خونه > محصولات > ماژول فرستنده اپتیکال >

400G OSFP LR4 PAM4 Optical Transceiver 10km Duplex LC Single Mode Fiber Module for Data Center

400G OSFP LR4 optical transceiver,OSFP transceiver for data center,single mode fiber transceiver 10km

OSFP transceiver for data center

single mode fiber transceiver 10km

محل منبع:

گوانگدونگ، چین

نام تجاری:

HILINK

گواهی:

CE FCC Rohs

شماره مدل:

HL-OSFP-400G-LR4

با ما تماس بگیرید

درخواست نقل قول

400G OSFP LR4 PAM4 Optical Transceiver 10km Duplex LC Single Mode Fiber Module for Data Center

جزئیات محصول

نرخ داده:

OSFP400G

فاصله:

10 کیلومتر

رابط:

کانکتور LC دوبلکس

طول موج:

1310 نانومتر

بسته:

فیبر نوری

برنامه:

مخابرات

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

قیمت

قابل مذاکره

جزئیات بسته بندی

کیسه استاتیک، تخت پلاستیکی، جعبه خرده فروشی، توسط نیاز

شرایط پرداخت

L/C، T/T، Western Union.Paypal

قابلیت ارائه

100/PCS/ماه

محصولات مرتبط

OSFP 400G LR4 1310nm 10km Transceiver Module

بهترین قیمت را دریافت کنید

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

بهترین قیمت را دریافت کنید

HL-Cir-1310 3-Port Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm باکس ABS برای مرکز داده

بهترین قیمت را دریافت کنید

ماژول گیرنده نوری Hilink 100G QSFP28 با فاصله 100 کیلومتری نرخ داده 100G و ZR4+

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

حالا تماس بگیرید

توضیحات محصول

400G OSFP LR4 PAM4 Optical Transceiver

Product Overview

Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module features 8 independent electrical input/output channels operating up to 53.125Gbps per channel.

The integrated GearBox converts 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s.

Key Features

Supports 425Gbps
Single 3.3V Power Supply
Up to 10km over SMF with KP4 FEC
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface
PIN and TIA array on the receiver side
Power dissipation < 8W
Case temperature range: 0°C to 70°C (commercial)
Safety Certification: TUV/UL/FDA*1
RoHS Compliant

Applications

400G Ethernet
400G-LR4 applications
Data center
InfiniBand

Standards Compliance

400G BASE-DR4 Ethernet
Data Center standards

Order Information

Part No.	Specifications	Application
HL-OSFP-400G-LR4	OSFP \| 425Gbps \| 10KM \| SMF \| Duplex LC \| CMIS4.0*3 \| 0~70℃ \| 3.3V \| DDM	400G Ethernet

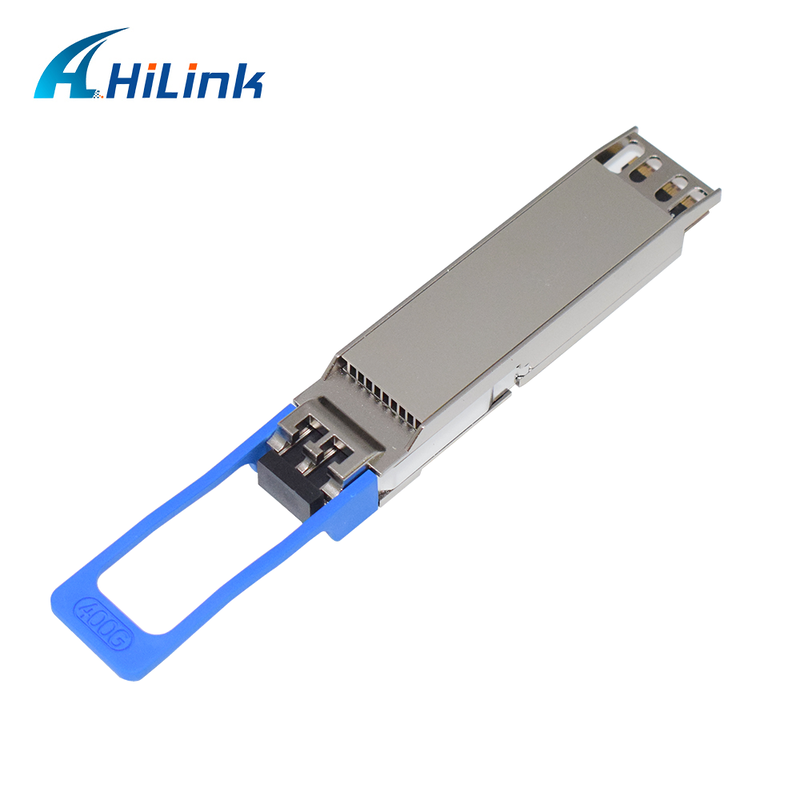

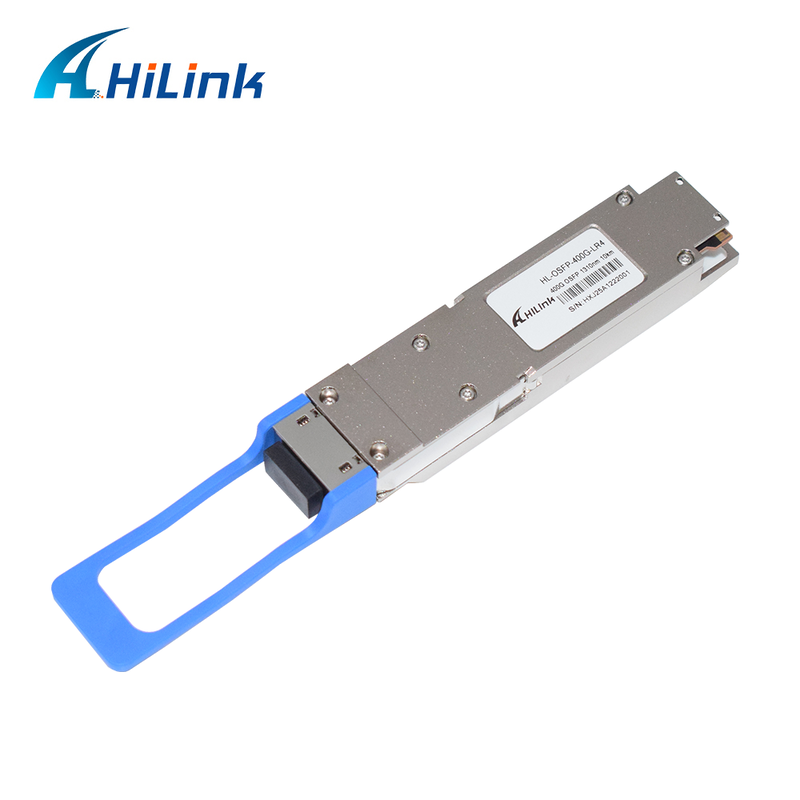

Product Images

Mechanical Dimensions

Transceiver Block Diagram

Application Reference Diagram

Company Information

Shenzhen Hilink Technology Co., Ltd., founded in 2007, specializes in manufacturing and marketing fiber optic products. We are RoHS, ISO & CE certified with 10+ years of experience in this field.

Our core competencies include fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, and solutions of DWDM, CWDM, WDM, MPO, AAWG.

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, we never use second-hand components.

What payment terms do you accept?

T/T, Paypal, Western Union are acceptable.

What are the shipping ways can you offer?

Our usual shipping ways are DHL, FedEX, TNT, UPS, EMS etc. It will take 3-7 days.

Do your products come with warranty?

Yes, We provide 3 years warranty for all our products from the date of shipment.

How to place an order?

1. Order details confirmed - please tell us the model and quantity you need.
2. Proforma Invoice confirmed - the order will be arranged upon receipt of your payment.
3. Confirm and ship the goods - tracking number will be sent to you promptly.
4. We will help to track your goods until you receive them safely.

As we have various kinds of products, if you can't find the correct item you need, please send us inquiry. We will follow up shortly.
