Name: Hilink QSDD-400G-SR 400G QSFP56-DD SR8 Optical Transceiver with 400G Data Rate, 850nm Wavelength, and 100m Distance
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSDD-400G-SR8
Price: 405.00 USD
Availability: InStock

خونه > محصولات > ماژول فرستنده اپتیکال >

Hilink QSDD-400G-SR 400G QSFP56-DD SR8 Optical Transceiver with 400G Data Rate, 850nm Wavelength, and 100m Distance

400G QSFP56-DD SR8 transceiver,850nm optical transceiver module,400G transceiver with 100m distance

850nm optical transceiver module

400G transceiver with 100m distance

محل منبع:

گوانگدونگ، چین

نام تجاری:

Hilink

گواهی:

CE RoHs

شماره مدل:

HL-QSDD-400G-SR8

با ما تماس بگیرید

درخواست نقل قول

Hilink QSDD-400G-SR 400G QSFP56-DD SR8 Optical Transceiver with 400G Data Rate, 850nm Wavelength, and 100m Distance

جزئیات محصول

نام محصول:

QSDD-400G-SR8

نرخ داده:

400 گرم

طول موج:

850 نانومتر

فاصله:

100 متر

رابط:

تک MPO16

گارانتی:

3 سال

گواهی:

RoHS 2.0

زمان تحویل:

3-7 روز کاری

OEM:

پشتیبانی کنید

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

قیمت

EXW Price: 130USD/PCS~680USD/PCS

جزئیات بسته بندی

بسته معمولی یا OEM

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، T/T، وسترن یونیون

محصولات مرتبط

400G OSFP LR4 PAM4 Transceiver Optical 10km ماژول فیبر تک حالت LC دوگانه برای مرکز داده

بهترین قیمت را دریافت کنید

ماژول فرستنده گیرنده OSFP 400G LR4 1310nm 10km

بهترین قیمت را دریافت کنید

گیرنده OSFP 400G هیلینک با طول موج 1310nm و فاصله 10 کیلومتری برای انتقال داده با سرعت بالا

بهترین قیمت را دریافت کنید

HL-Cir-1310 3-Port Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm باکس ABS برای مرکز داده

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

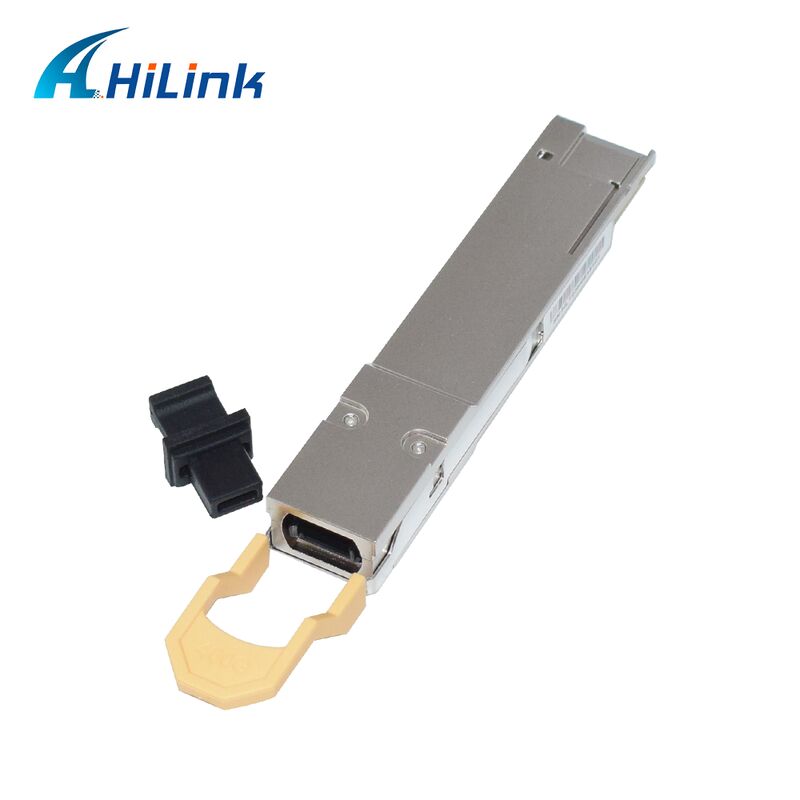

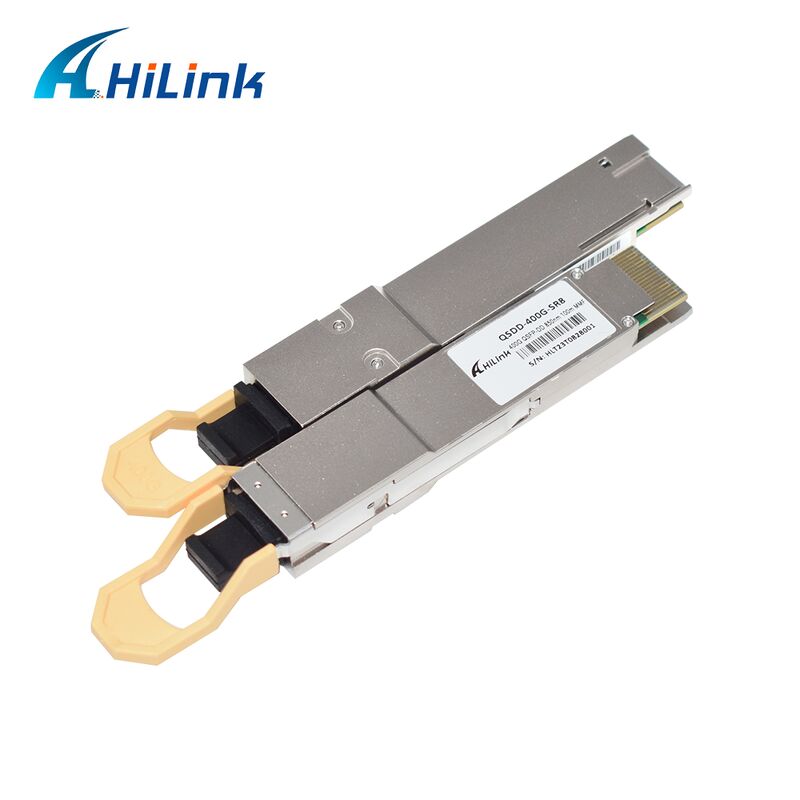

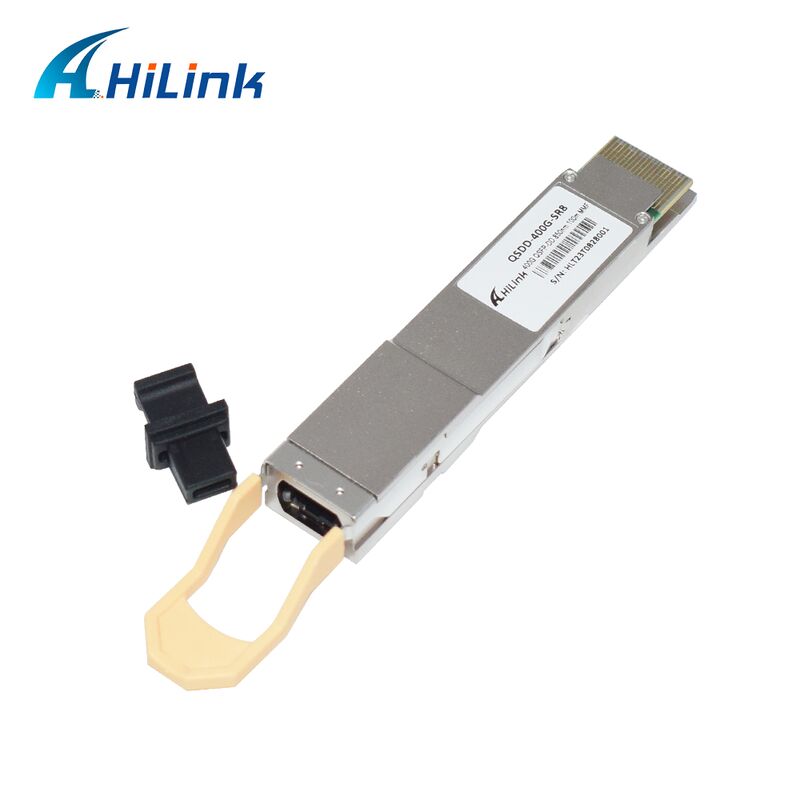

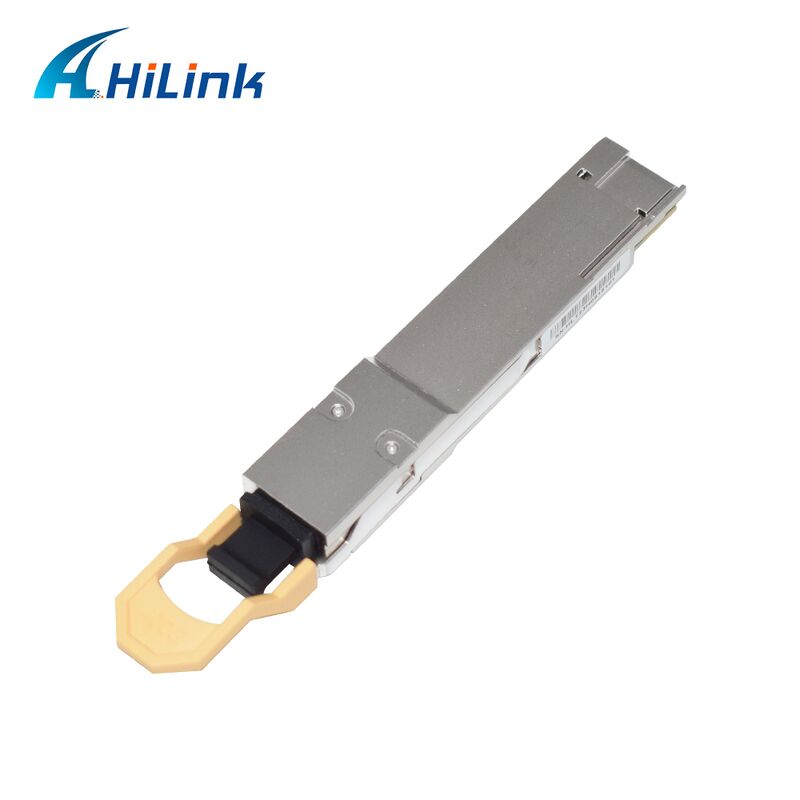

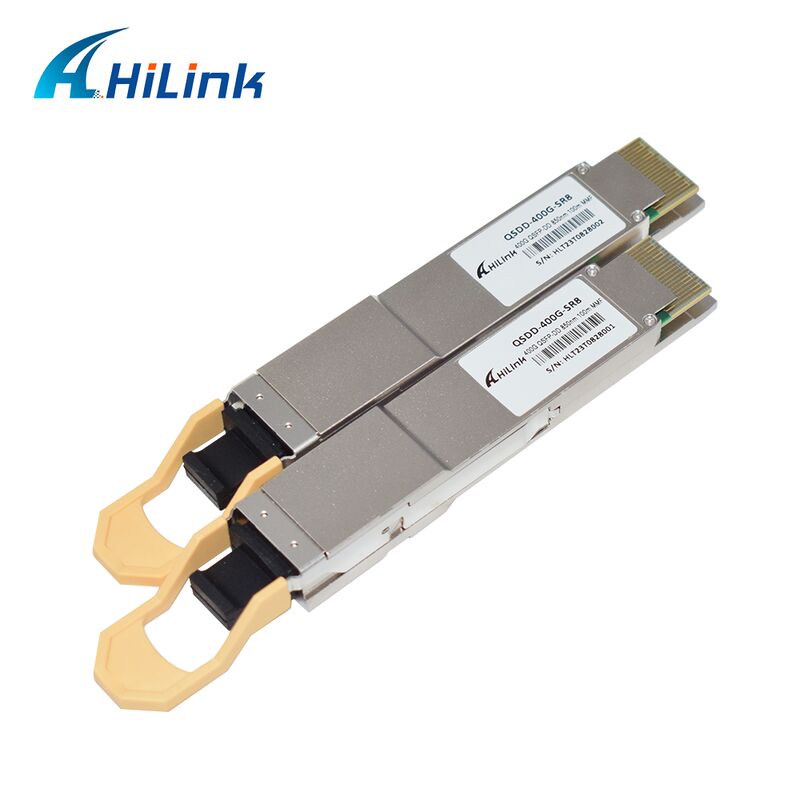

Hilink QSDD-400G-SR 400G QSFP56-DD SR8 Optical Transceiver

The Hilink QSDD-400G-SR 400G QSFP56-DD SR8 Optical Transceiver with CDR solution is engineered for high-speed data transmission, supporting serial optical data links up to 8x53.125Gbps data rate using PAM4 modulation over multi-mode fiber.

Key Features

Up to 53.125Gbps data rate per channel using PAM4 modulation
Support for 400GAUI-8 electrical interface
Integrated 850nm VCSEL array and PD array
Single MPO16 connector receptacle optical interface compliant
Digital Diagnostic Monitoring (DDM) function implemented
Hot-pluggable QSFP-DD form factor
Maximum power consumption of 8W
Single +3.3V power supply
Reach up to 70m on MMF (OM3)
Reach up to 100m on MMF (OM4)
Compliant with ROHS 2.0 standards

Compliance Standards: IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0

Applications

Data centers and Cloud Networks, 400GE Interconnect Requirements

Company Information

OEM/ODM orders are available upon request.

Quality Guarantee

We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Portfolio

We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

We accept T/T, PayPal, and Western Union.

What shipping methods do you offer?

Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

What devices are your products compatible with?

Our products are compatible with mainstream network switches and equipment.

How to place an order?

Confirm order details - provide the model and quantity you need
Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
Confirm and ship goods - tracking number will be sent promptly
We'll help track your shipment until safe delivery
