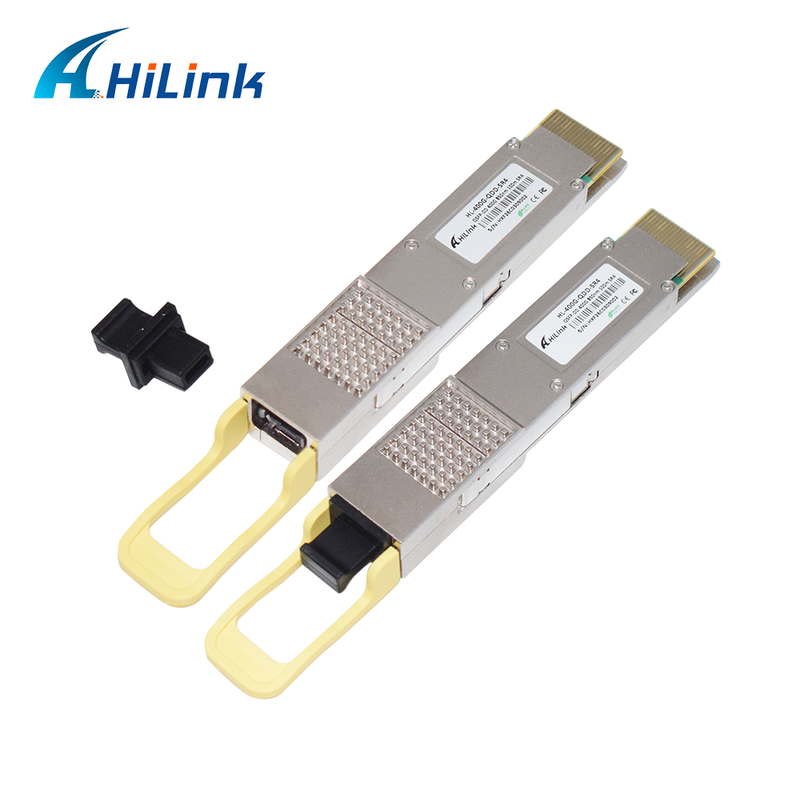

Name: Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QDD-400G-SR4
Price: 230.00 USD
Availability: InStock

خونه > محصولات > ماژول فرستنده اپتیکال >

Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission

محل منبع:

گوانگدونگ، چین

نام تجاری:

Hilink

گواهی:

CE RoHs

شماره مدل:

HL-QDD-400G-SR4

با ما تماس بگیرید

درخواست نقل قول

Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission

جزئیات محصول

نام محصول:

400G QSFP-DD SR4

نرخ داده:

400 گرم

طول موج:

850 نانومتر

فاصله:

100 متر

رابط:

MPO-12

گارانتی:

3 سال

زمان تحویل:

3-7 روز کاری

OEM:

پشتیبانی کنید

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

قیمت

200~260USD

جزئیات بسته بندی

بسته معمولی یا OEM

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، T/T، وسترن یونیون

محصولات مرتبط

Hilink 10Gbps XFP Optical Transceiver with 80km Reach Duplex LC DDM Interface RoHS Compliant

بهترین قیمت را دریافت کنید

Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission

بهترین قیمت را دریافت کنید

فرستنده گیرنده 25 گیگابیت بر ثانیه 40 کیلومتر 1270/1310 نانومتر SFP28 BIDI

بهترین قیمت را دریافت کنید

25G SFP28 BIDI 50km DDM ترانسسیور

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Hilink Compatible Module HL-QDD-400G-SR4 400G QSFP-DD SR4 850nm 100m MPO-12

Product Overview

This 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module is designed for 100m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. On the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.

An optical fiber cable with an MPO-12 connector can be plugged into the QSFP-DD SR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. Electrical connection is achieved through a QSFP-DD MSA-compliant edge type connector. This product meets QSFP-DD MSA Type2 specifications and is designed to withstand harsh external operating conditions including temperature, humidity and EMI interference.

Key Features

QSFP-DD MSA Compliant
CMIS compliance
Optical Interface: IEEE 802.3db compliant
Electrical Interface: IEEE 802.3 2022 400GAUI-8
Support 425Gb/s aggregate bit rate
4 Parallel optical lanes
MPO-12 connector
Maximum link length of 70m on OM3 or 100m on OM4
Operating case temperature 0 to 70℃
Maximum power consumption 8W
I2C interface for status monitoring and control

Applications

Ethernet networks
Telecommunications systems
Infiniband applications

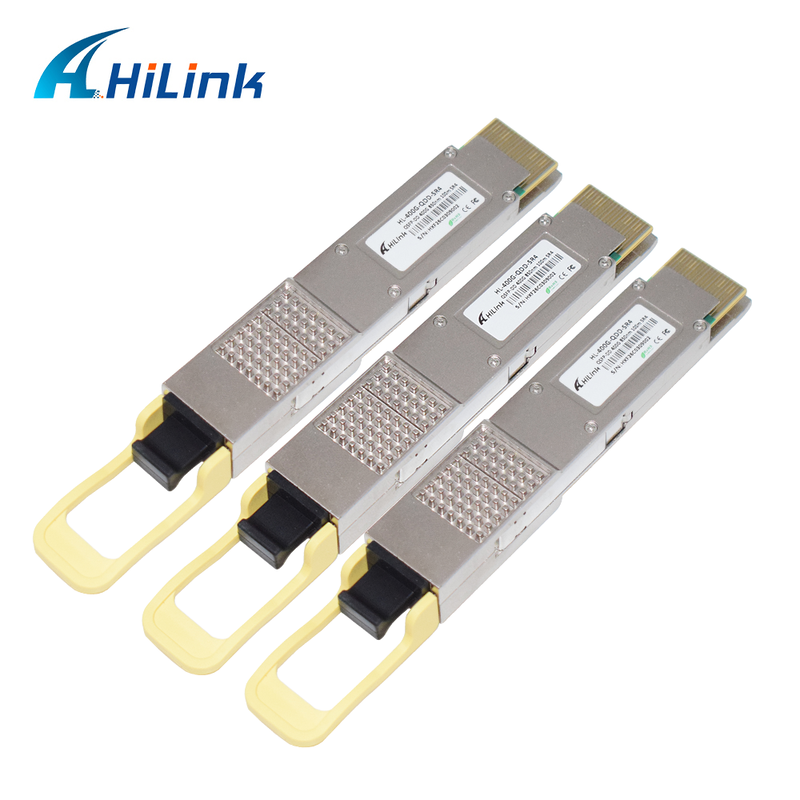

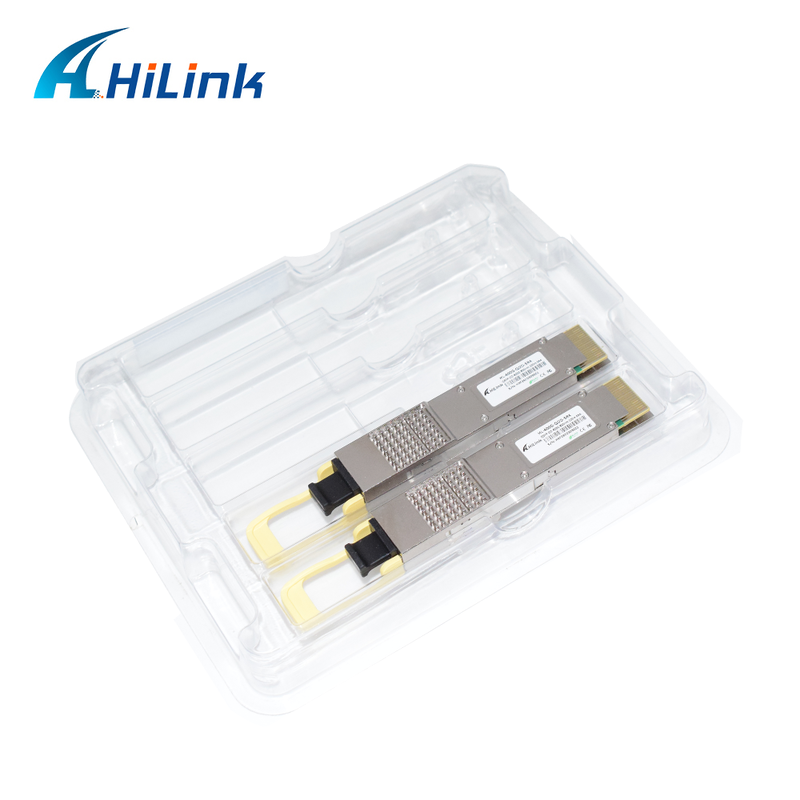

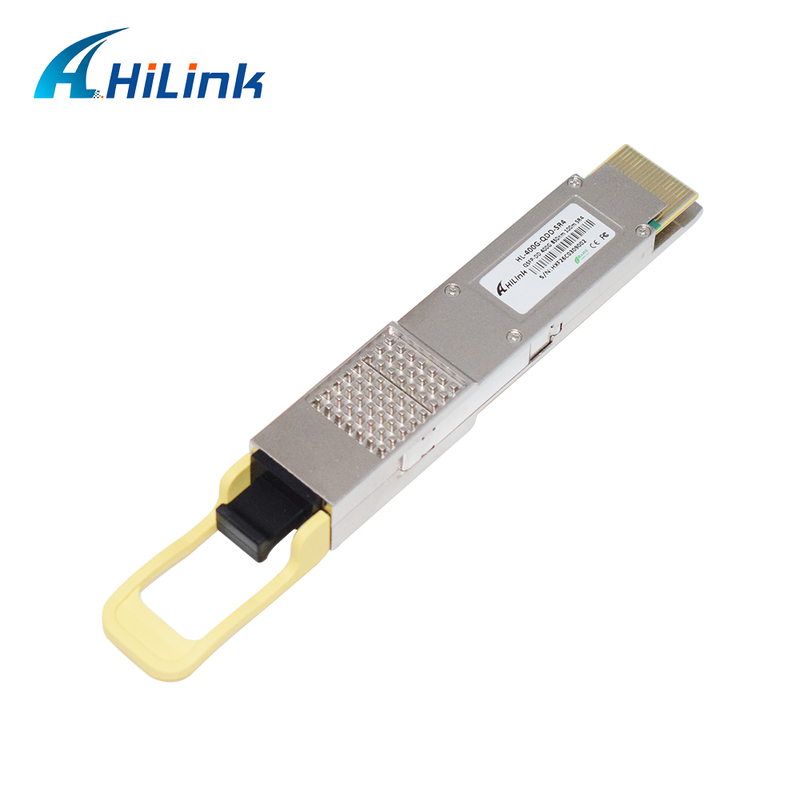

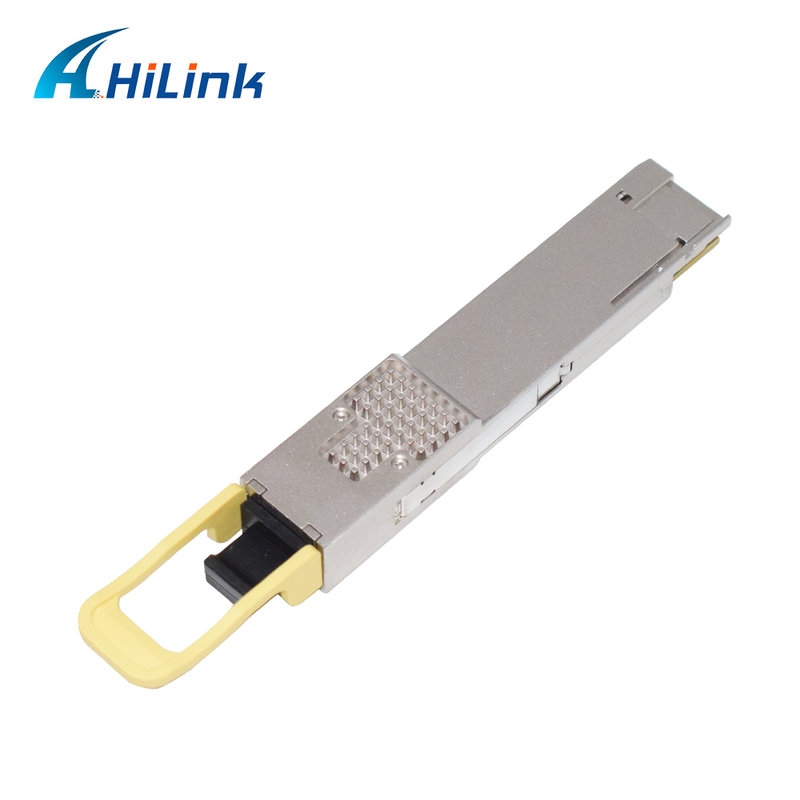

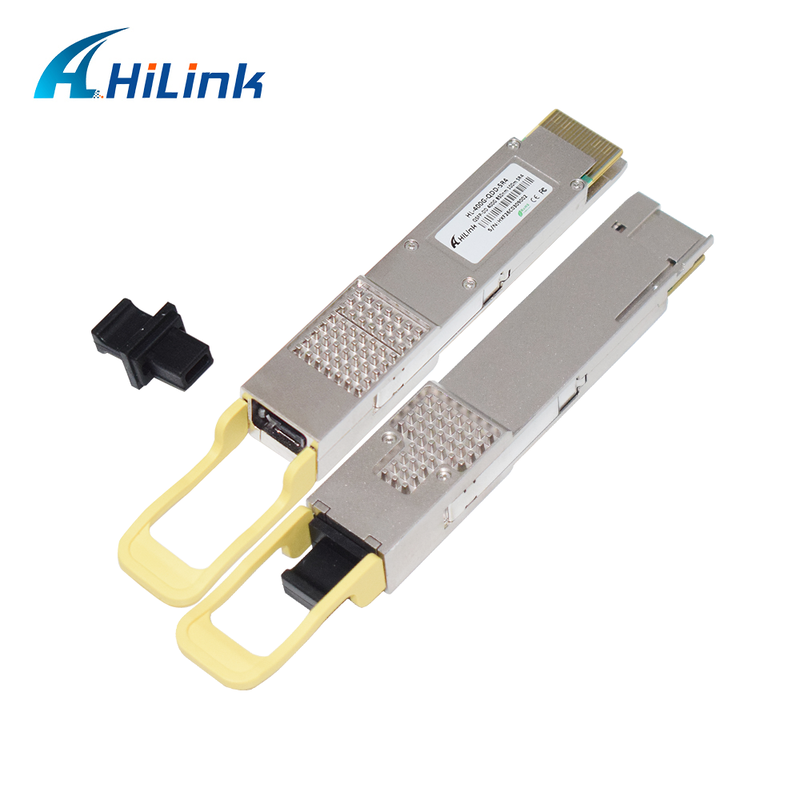

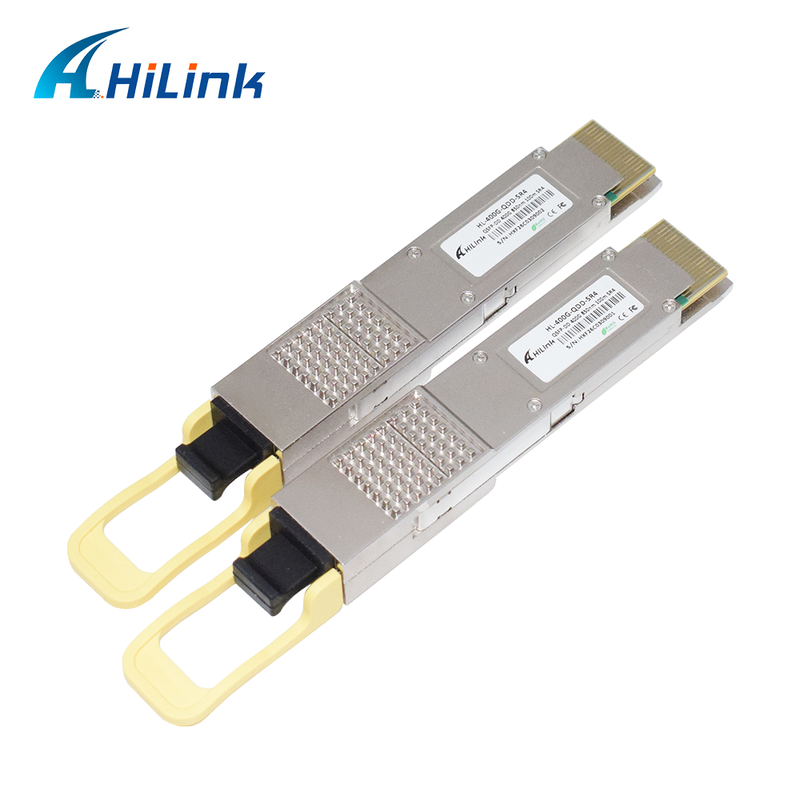

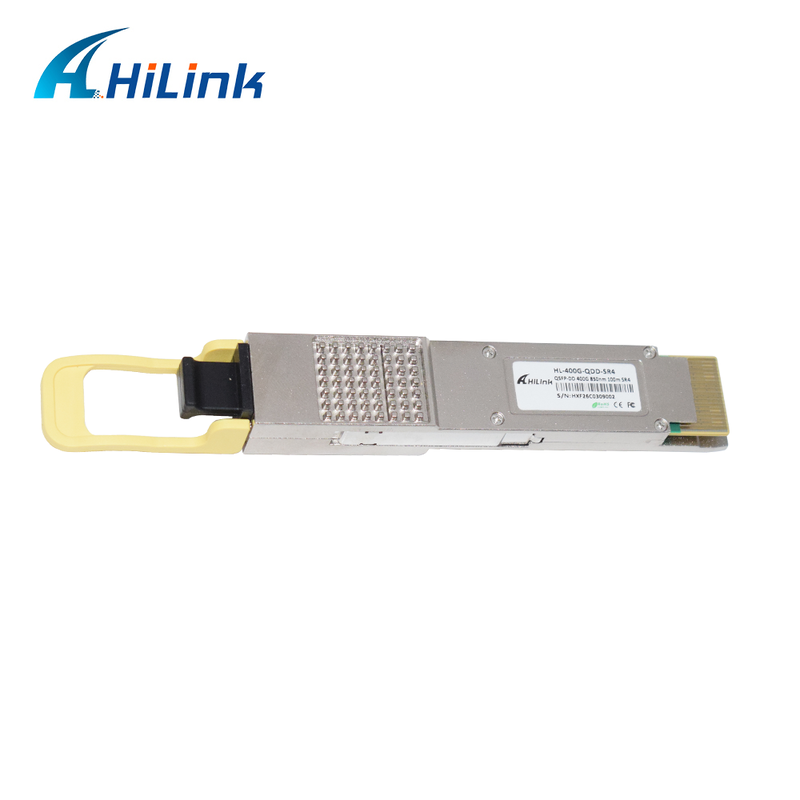

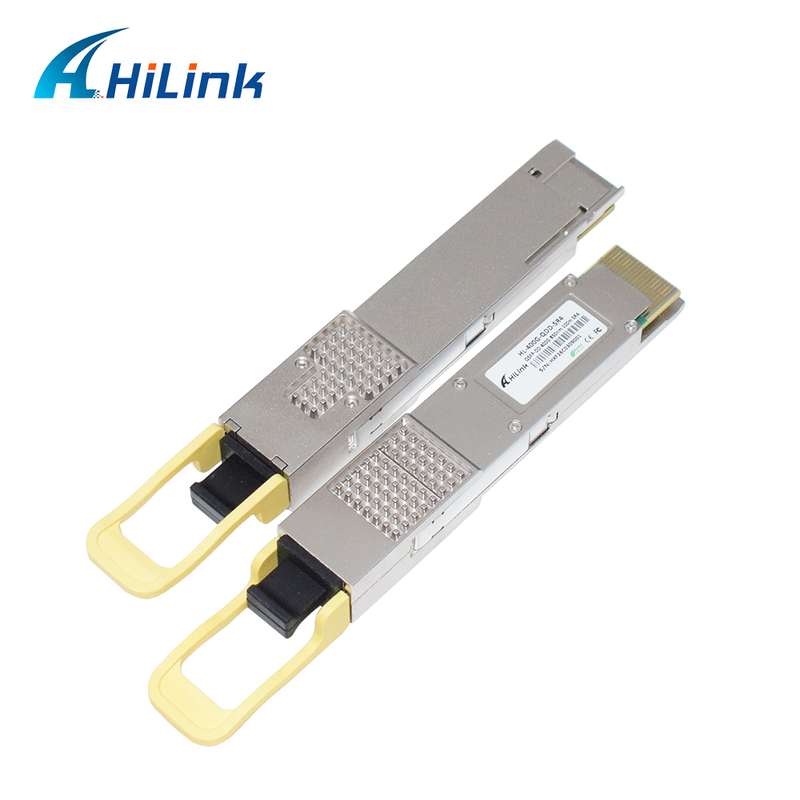

Product Images

Company Information

OEM/ODM orders are available upon request.

Quality Guarantee

We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Portfolio

We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

We accept T/T, PayPal, and Western Union.

What shipping methods do you offer?

Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

What devices are your products compatible with?

Our products are compatible with mainstream network switches and equipment.

How to place an order?

Confirm order details - provide the model and quantity you need
Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
Confirm and ship goods - tracking number will be sent promptly
We'll help track your shipment until safe delivery
